Voltage and current relay with LED display 63A - GEYA
Overvoltage and under-voltage protection device, overcurrent protection device for household appliances.
Functions
- Voltage/current monitoring and protection.
- Bus double wiring design enhances the ability.
- Overload/under-voltage and overload values can be set.
- Self-reset after a fault.

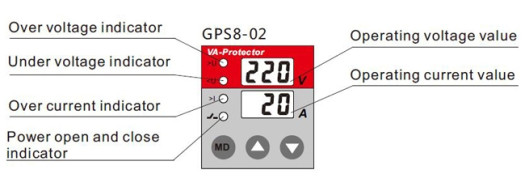

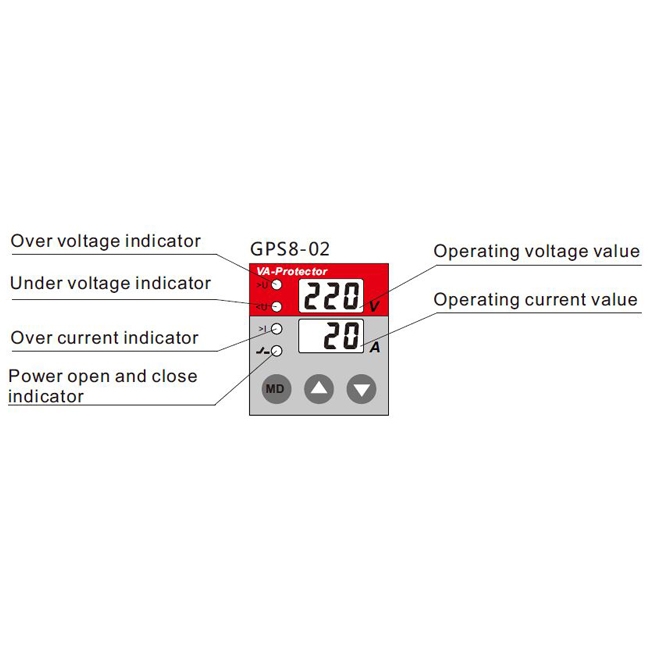

- Relay status indicated by LED.
Rated supply voltage: AC220V（L-N).
Rated power frequency: 50/60Hz.
Rated operating current: 63A(AC1).
Load: AC max.3VA.
Overcurrent tripping value: 1A-63A.
Overcurrent action delay: 5 seconds.
Overall dimensions: 82x36x68 mm.
The number of modules: 2.
DIN rail mounting.
Manufacturer: GEYA (China)
...
